February 26, 2020 by Neal Pollock from Shearwater.com - Monthly blog

(Neal Pollock is an Associate Professor in kinesiology at Université Laval in Quebec, Canada. His academic training is in zoology, exercise physiology and environmental physiology. His research interests focus on human health and safety in extreme environments.)

The oxygen continuum

PO₂ represents the product of the fraction of oxygen (FO₂) multiplied by the ambient pressure (PO₂ = FO₂ * ambient pressure). PO₂ is normally reported in atmospheres (atm). The PO₂ of air at sea level pressure is 0.21 atm (0.21 * 1 atm). The PO2 delivered by open-circuit systems increases and decreases as a function of ambient pressure. For example, the PO₂ of open-circuit air breathed at 1 msw (3 fsw) is already 0.23 atm (0.21 * 1.1 atm). The PO₂ of open-circuit air breathed at 20 msw (66 fsw) is 0.63 atm (0.21 * 3.0 atm).

Oxygen toxicity

Pulmonary oxygen toxicity involves irritation of lung tissue caused by prolonged breathing, often for many hours, of substantially elevated oxygen concentrations. This can develop with a PO₂ as low as 0.5 atm given sufficient exposure time. Signs and symptoms include persistent unproductive cough, a sense of tightness in the chest or discomfort during inspiration, and pain behind the sternum. Mild symptoms typically resolve without consequence in the hours following a return to air breathing. One of the reasons that immersion pulmonary edema (IPE) may be missed is that mild symptoms can be attributed to pulmonary oxygen toxicity.

Central nervous system (CNS) oxygen toxicity involves an insult to the brain caused by exposure to higher PO₂. This can develop after relatively short periods given high enough values. Signs and symptoms include twitching of facial muscles, tunnel vision, nausea, paresthesia, unconsciousness, and convulsions. Subtle manifestations may appear first, but cases can evolve rapidly or immediately present with fully incapacitating effects. The risk for CNS toxicity increases beyond a PO₂ of 1.3 atm (Arielli et al. 2006). CNS toxicity represents a substantial threat since a loss of consciousness underwater is accompanied by a high risk of drowning.

Ocular oxygen toxicity is another possibility. Hyperbaric myopia (nearsightedness) can develop in both patients receiving hyperbaric oxygen (HBO) therapy and divers exposed to high PO₂. This condition requires repetitive exposure over a fairly short period. It is increasingly likely after 15 or more HBO sessions and can develop at a variable rate with divers breathing high PO₂. The visual changes typically resolve fully within the weeks following the end of exposure.

High oxygen utility and concerns

Oxygen toxicity is less of a concern with open-circuit diving since peak PO₂s are generally breathed for relatively short periods. It is a critical consideration in closed-circuit rebreather diving as high PO₂ is maintained at a "setpoint" throughout most of dives.

A high PO₂ setpoint is desirable to reduce decompression stress on divers. The higher the setpoint, the less inert gas will be taken up during the descent and bottom phase, and the more that will be eliminated as the diver ascends, particularly in the latter part of the ascent. The PO₂ of air breathed on open-circuit is 1.3 atm at roughly 52 msw (171 fsw). A closed-circuit rebreather operating on a fixed 1.3 atm PO₂ setpoint would deliver a progressively lower inert gas partial pressure from this point through the ascent. With a PO₂ setpoint of 1.6 atm, a rebreather diver would inspire virtually no inert gas at a depth of 6 msw (20 fsw), producing a steep gradient for inert gas elimination.

Minimizing decompression stress is important, but oxygen toxicity is also a critical consideration of high PO₂. It is tempting to downplay concerns of acute high PO₂ when HBO therapy used to treat decompression sickness can expose patients to a PO₂ of 2.8 atm, but there are critical differences that reduce the CNS toxicity risk in a dry chamber. HBO treatment includes scheduled air breaks to reduce the likelihood of adverse reaction; patients remain at rest; and, most importantly, a patient convulsing in a chamber can be simply managed by removing the oxygen mask or hood and clearing the airway as required.

Divers in the water face much greater hazard with any impairment of consciousness. Self-rescue capability is lost and rescue by others is far from assured. Full-face masks or mouthpiece retaining straps reduce the likelihood of losing the mouthpiece, but they do not address the airway compromise associated with vomiting into a mouthpiece or the loss of buoyancy control. The threshold for seizures may also be lower in the water, driven by exercise, rising arterial CO₂ (associated with exercise or inadequate CO₂ removal), increased work of breathing, general stress, cold (or cool) stress, and a wide range of medications or drugs that divers might use without being aware of potential interactions.

High oxygen limits

The PO₂ limit of 1.6 atm has a long history in scientific, occupational, and technical diving. There is, however, a broad shift in practice towards more conservative bounds. The default high setpoint on many modern rebreathers is 1.3 atm. It is not uncommon for lower PO₂ setpoints to be used for part or all of long exposures. Both the US National Oceanic and Atmospheric Administration (NOAA) and the Canadian Standards Association Z275.2 committee reduced the maximum PO₂ during the working phase of dives from 1.6 to 1.4 atm in 2015, coming closer in line with the standard 1.4 atm PO₂ recreational limit.

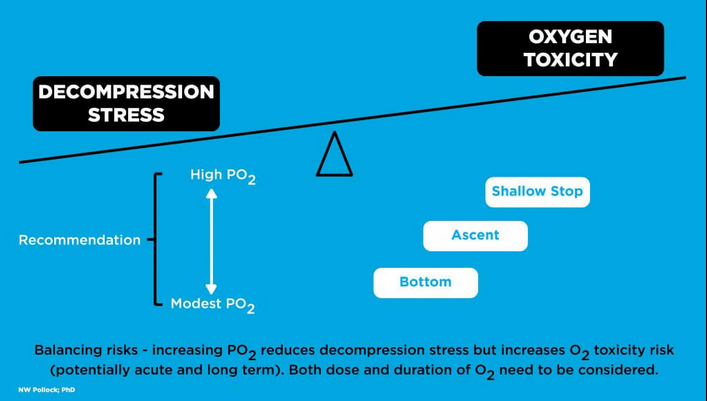

PO₂ limits should reflect a compromise between the benefit of reducing decompression stress and the hazards of oxygen toxicity. A reasonable risk-benefit balance can be achieved by moderating PO₂ during the deep phase of a dive where the absolute reduction in inert gas uptake is modest and the life threat from compromised consciousness is extremely high. A lower setpoint at depth would allow more flexibility to increase the PO₂ during the shallower portion of the ascent where the decompression benefit of high PO₂ is great and the life threat of compromised consciousness is somewhat reduced. Moderating the total oxygen dose (a function of concentration and duration) may offer some protection for all forms of toxicity, including potentially serious ocular effects.

The argument that the 1.6 atm PO₂ limit has been well-tested through time is not fully valid. The existence of a limit is immaterial unless a large number of exposures are made to the limit. Exposures conducted partially or wholly at lower PO₂ will not provide insight into the safety of higher PO₂. There is a sufficient combination of documented evidence and theoretical concerns to encourage the use of modest PO₂ limits to ensure safe exposures and to potential avoid long term risks.

Addressing knowledge gaps

More research is needed to better understand both the hazards and benefits of high PO₂, and the wide variability of risk between individuals and between exposures. It is difficult to conduct research on potentially high consequence events, but the diving community can help by reporting details for all cases of oxygen toxicity, regardless of the severity or of the outcome. Extensive data are required to refine the guidance and to develop the capabilities of monitoring systems.

Conclusions

High PO₂ offers both benefit and risk to divers. A reduction in decompression stress must be balanced against an increased risk of oxygen toxicity. Change in practice has led to some decrease in PO₂ norms, but further research is needed to better understand variables that affect susceptibility to oxygen toxicity and the severity of outcomes. Additional information will almost certainly prompt further refinement of guidelines and practice.

Reference

Arieli R, Shochat T, Adir Y. CNS toxicity in closed-circuit oxygen diving: symptoms reported from 2527 dives. Aviation, Space, and Environmental Medicine. 2006; 77(5): 526–532.

Pollock NW. Oxygen partial pressure - hazards and safety. In: Cote IM, Verde EA, eds. Diving for Science 2019: Proceedings of the AAUS 38th Scientific Symposium. American Academy of Underwater Sciences: Mobile, AL; 2019: 33–38.
